WooCommerce Performance Engineering Case Study: How Hayati Vape Passed Core Web Vitals, Survived a 20,000+ Request Bot Attack, and Doubled Monthly Revenue

WooCommerce Performance Engineering Case Study: How Hayati Vape Passed Core Web Vitals, Survived a 20,000+ Request Bot Attack, and Doubled Monthly Revenue

A deep dive into server-level caching, database optimization, custom Elementor engineering, and active Layer 7 edge defense for a high-traffic UK e-commerce store.

The Short Version

Most “WooCommerce performance” case studies follow a predictable script: a bloated, slow site gets rescued after breaking down. This project was built on a different premise. Hayati Vape was engineered from the ground up at the server level in October 2025, specifically designed so it would never require an emergency rescue under load.

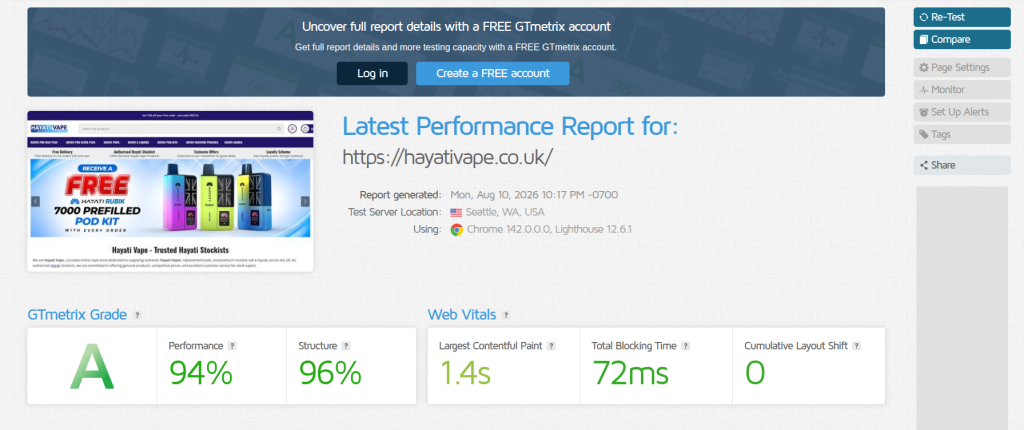

Six months into deployment, when a sustained 20,000+ request bot attack targeted the site’s search infrastructure, the system performed exactly as intended: zero downtime, zero checkout degradation, and zero lost revenue. Simultaneously, the fast, stable infrastructure supported a steady 100% growth in monthly revenue while effortlessly passing Google’s Core Web Vitals.

---

Why This Case Study Is Different

The vast majority of UK WooCommerce stores rely on generic shared or managed WordPress hosting with a front-end caching plugin bolted on top. That strategy works well enough—until catalog filters are queried, checkout traffic spikes, or malicious crawlers hit unmanaged endpoints. At that point, the application layer collapses because nothing beneath WordPress was engineered for scale.

At WPRefine, we build from the bottom up: Infrastructure first, WordPress second.

“Google doesn’t like slow websites. Neither do users. Getting a WooCommerce site to pass Core Web Vitals is tough—but definitely not impossible. For a real-world WooCommerce + Elementor store, you need more than just a caching plugin. Proper infrastructure, caching, database optimization, frontend optimization, and bot management all play a role.”

— WPRefine Engineering Team

---

The Stack: Production-Grade Infrastructure Architecture

To achieve enterprise reliability on cost-effective cloud hardware, every layer of the production stack was hand-tuned specifically for WooCommerce database patterns:

Layer	Technology Stack	Engineering Focus
Infrastructure	DigitalOcean Dedicated Droplet	2 vCPU / 4GB RAM / Dedicated Swap Space
OS & Web Server	Ubuntu LTS + Nginx (Latest)	Server-level FastCGI Caching (Bypasses PHP)
Runtime	PHP 8.x (OPcache, Redis, GD, cURL)	Tuned PHP-FPM workers based on memory footprint
Database	MariaDB + Redis Object Cache	Persistent object caching for queries & transients
CMS / Commerce	WordPress + WooCommerce	WoodMart Custom Child Theme + Cleaned Hooks
Page Builder	Elementor + Custom Addon Plugin	In-house custom lightweight widgets (Zero Bloat)
Edge / WAF	Cloudflare Enterprise Rules	Custom L7 rules, edge bot filtering, parameter limits

Key Technical Interventions

• Server-Level Caching Over Plugin Reliance: Instead of executing PHP to serve cached HTML via WordPress plugins, Nginx FastCGI serves static pages directly in memory under sub-20ms TTFB.
• Custom Elementor Ecosystem: Replaced resource-heavy third-party element packs with a dedicated, lightweight internal plugin (hayativape-custom-addon) for UI components like trust badges and AJAX product grids, preventing DOM expansion.
• PHP-FPM Worker Tuning: Configured pm.max_children and OPcache limits tailored to 4GB RAM bounds, eliminating worker starvation while avoiding swap thrashing during unexpected surges.

---

Under Fire: Neutralizing a 20,000+ Request Bot Attack

Clean synthetic benchmarks don’t guarantee real-world uptime. The real test of an e-commerce architecture happens when automated traffic attempts to exhaust server resources.

Rapid Mitigation Strategy (Same-Day Neutralization)

1. Edge Mitigation (Cloudflare WAF): Immediately deployed tailored Cloudflare Web Application Firewall rules filtering the specific user-agent payload and bad IPv6 subnets at the edge before traffic hit origin infrastructure.
2. Robots Directive Optimization: Modified robots.txt directives to explicitly forbid indexing on faceted parameter variations, signaling compliant engines to back off.
3. Nginx Rate Limiting: Enforced parameter-level zone rate-limiting at the web server layer, ensuring spoofed or unknown user agents hammering uncached queries receive HTTP 429 throttles automatically.

Business Outcome: Zero downtime. Zero degraded checkouts. Shoppers continued checking out normally throughout the entire incident duration.

---

The Business Outcome

Speed for the sake of benchmarks is a vanity metric; site speed matters because it protects conversion rates. By establishing a stable, core-web-vitals-compliant platform coupled with consistent technical SEO optimizations (RankMath, Fast Indexing, IndexNow API), Hayati Vape generated measurable business expansion:

Metric Period	Performance & Revenue Progress
Baseline Period	Initial optimization completed; stable platform benchmark established
Growth Phase (Month 2-3)	+50% organic revenue increase following Core Web Vitals clearance
Current Trajectory	100% Total Revenue Growth with ~2,000 monthly organic engagement sessions
